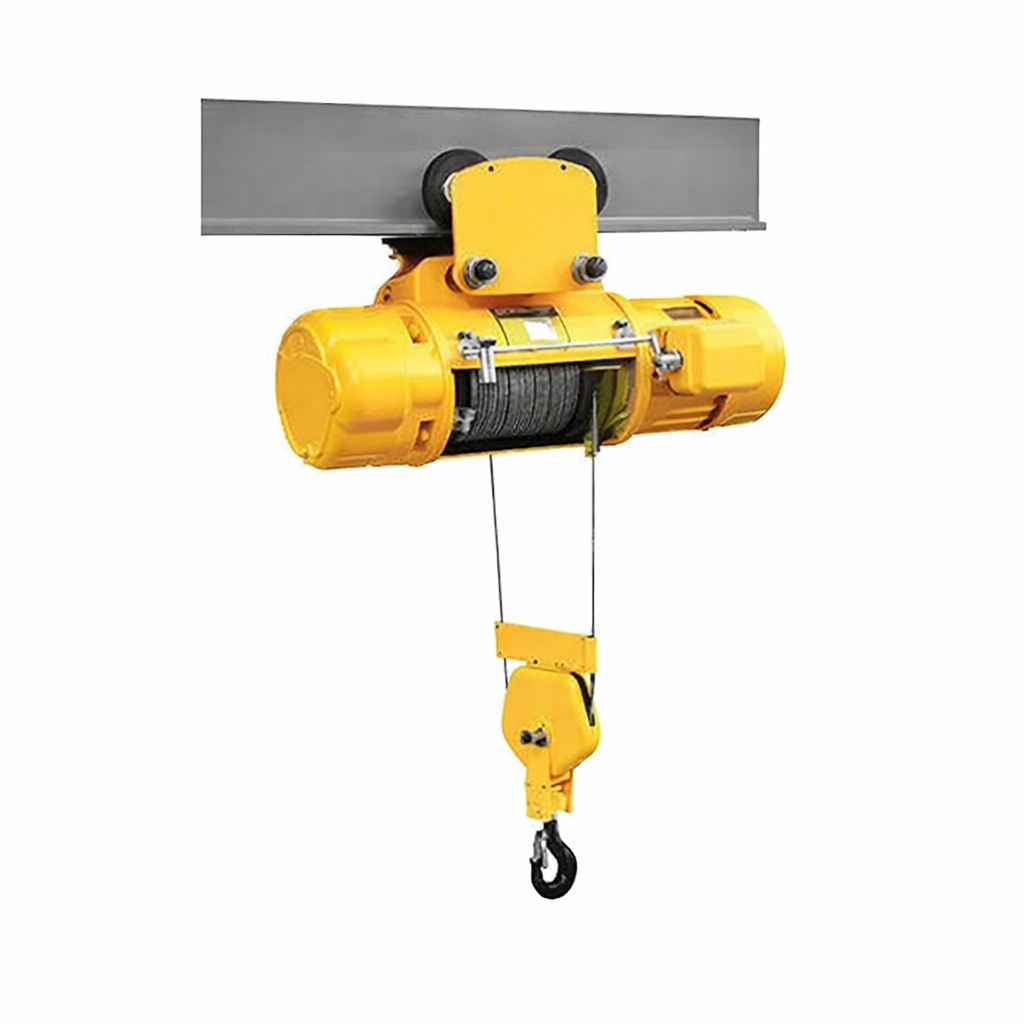

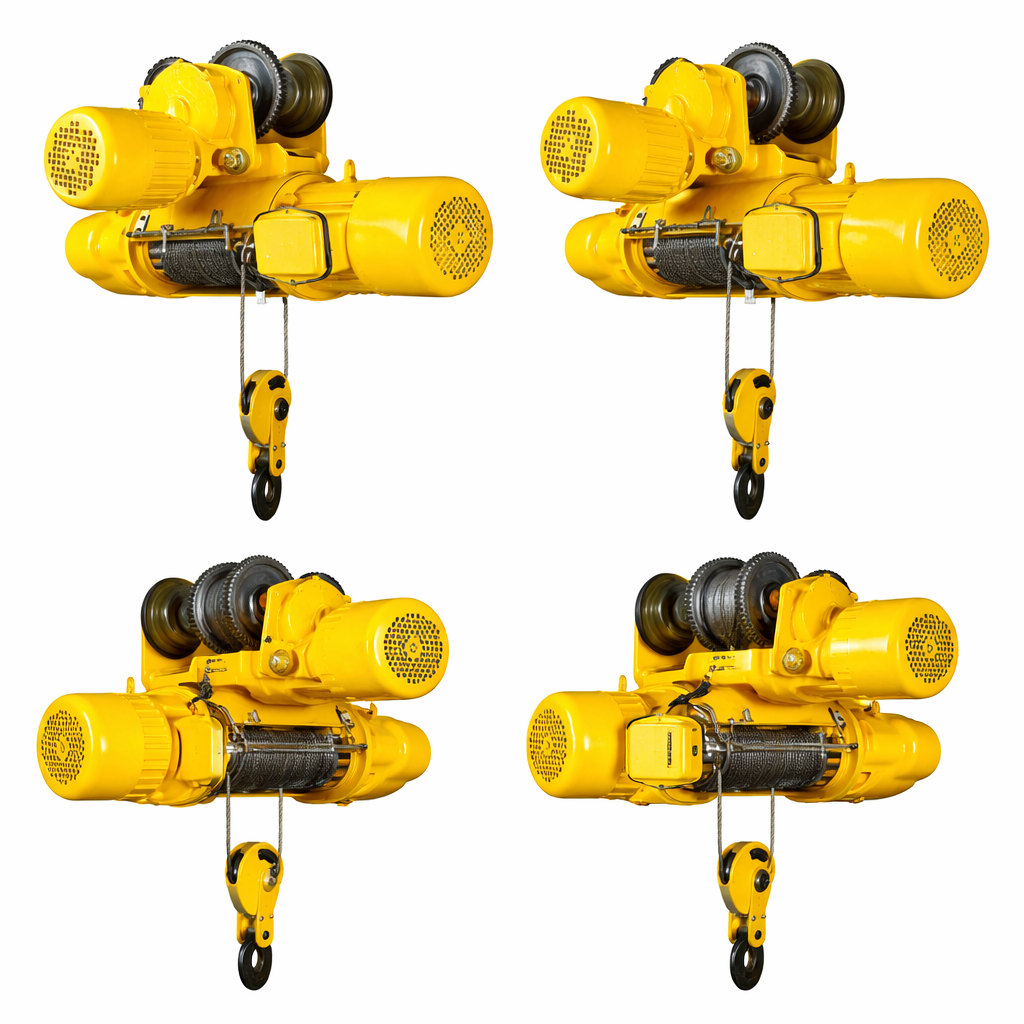

1 ton Rope Hoist with four way trolley price in bangladesh
Original price was: ৳ 95,000.00.৳ 85,000.00Current price is: ৳ 85,000.00.
Description
Rope Hoist with trolley Electric Wire (SGRH-1T) is a type of material handling equipment, installed on a single beam crane, linear curve strander beams or it can be used at the hoisting mechanism of double beam crane, gantry crane, linear crane for material handling by industrial
and mining enterprises, railways, and warehouses, etc. The lifting capacity of a single-speed electric wire rope hoist is 1 ton and the working class is M3.
This is single speed, electric hoist. Wire rope electric hoist is the most common lifting equipment, which can be installed on a single girder overhead crane or single beam gantry crane. With different design principles and using environments, small electric hoist remote control have two kinds of
type, which is traveling hoist and stationary hoist. Generally speaking, electric hoist has pendent control and wireless control.
WHAT IS A ROPE HOIST
Electric wire rope hoists can lift the heaviest loads. They are a great option when you have long lift heights and high capacities that require accurate positioning. If the load is going to be supported for long periods of time, a wire rope hoist may be the right fit.
FEATURES OF SUJA GLOBAL 1TON ELECTRIC WIRE ROPE HOIST WITH TROLLEY (SGRH-1T)
- Lifting Capacity (T) 1TON.
- Lifting Height (m) 9 Meter.
- Lifting Speed (m/min) 8.
- Running Speed (m/min) 20/30.
- Wire Rope Type 6×37+1.
- I-Beam Track Model 16-28b.
- Working Duty M3.
- Lifting Height Power(kw) 1.5.
- Lifting Height R.P.M(r/min) 1380.
- Lifting Height Power supply 220-440v 50/60hz 3phase.
- Running Motor Power (kw) 0.2.
- Running Motor R.P.M(r/min) 1380.
- Running Motor Power supply 220-440v 50/60hz 3phase.
- Weight 353 kg.
- Certification CE, ISO.
SPECIFICATION OF SUJA GLOBAL 1TON ELECTRIC WIRE ROPE HOIST WITH TROLLEY (SGRH-1T)
| Name | Details |
|---|---|
| Model | SGRH-1T |
| Brand | SUJA GLOBAL |
| Origin | Singapore |
| Lifting Capacity (T) | 1TON |
| Lifting Height (m) | 9 Meter |
| Lifting Speed (m/min) | 8 |
| Running Speed (m/min) | 20/30 |
| Wire Rope Type | 6×37+1 |
| I-Beam Track Model | 16-28b |
| Working Duty | M3 |
| Lifting Height Power(kw) | 1.5 |
| Lifting Height R.P.M(r/min) | 1380 |
| Lifting Height Power supply | 220-440v 50/60hz 3phase |
| Running Motor Power (kw) | 0.2 |
| Running Motor R.P.M(r/min) | 1380 |
| Running Motor Power supply | 220-440v 50/60hz 3phase |
| Weight | 353 kg |
| Certification | CE, ISO |
