High Pressure Hot Water Steam Cleaner Model 0271 Handy Model BD

High-Pressure Car Home Office Carpet Cleaning Steam Cleaner cleaning, Sterilization, Ironing Clothes, Air Humidification, Inhibition of Formaldehyde,  Clean The Car, Interior Sauna

Steam CleanerHot water steam cleaners are used for a variety of industrial and commercial cleaning applications. They use high-pressure hot water and steam to remove dirt, grime, and other contaminants from surfaces such as floors, walls, and machinery. They are often used in facilities such as factories, warehouses, and commercial kitchens to clean large areas quickly and effectively. They can also be used to clean heavy equipment, vehicles, and outdoor surfaces such as sidewalks and parking lots. They are considered an effective tool for removing tough stains and grease, as well as sanitizing surfaces by killing bacteria and viruses.

Use only original accessories

Regularly check the appliance and the cable. Do not switch the appliance on it it is damaged Do not clean natatorium If natatorium has the water here s a lot of steam cmiis1on from the ill cap, please switch off and unplug the cleaner at once. 1he cleaner shall be checked and repaired by service agent If the supply cord is damaged, it must be replaced by the manufacturer, its service get similarly qualified persOns in order to avoid a hazard This applied s not intended for use by persons( including children)with reduced physical, y 0r mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use one

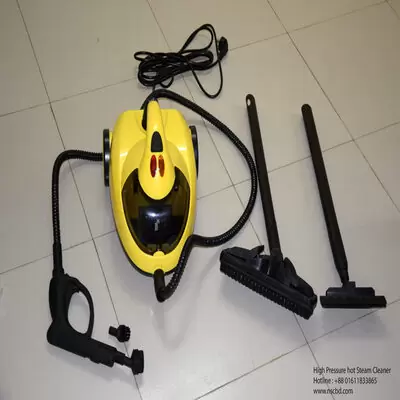

Machine accessories

01. Water tank

02. Wheels

03. Snap-on extension wands

04. Pressure cap
05. Carry handle
06. On/off switch
07. Operating indicator
08. Steam indicator light
09. Accessories store

10. Floor brush

11. Floor angled detail tool
12. Adaptor for accessories
13. Multi-purpose round brushes
14. High-pressure nozzle
15. Squeegee head

16. Steam gun
17. Steam trigger
18. Red safety button
19.Technical data: Mains supply:230V-50Hz,Power:1500W, Tank capacity: 1.5 litres. Fixed steam hose

20. Measuring jug, funnel and cleaning cloth

Preparing For Use

1. Make sure the machine is unplugged from the mains.
2. Unscrew the safety cap (2) by pushing down and turning anti-clockwise
3. Using the measuring jug and funnel (20) fill the machine with up to1600m of water (see pictures below). This should be sufficient to steam clean for approximately 1 hour.
4. Once full, replace the safety cap by turning clockwise, and fasten tightly
5. Attach the accessory or floor cleaning tool you require to the machine Now plug the machine into the mains (230V/50Hz) and switch on. Two
   lights should illuminate. The red light (5) is a power indicator. The orang9e
6. light (6) indicates that the machine is building up steam pressure. When the machine is first turned on this light will illuminate, and the machine will take up to 12 minutes to reach the correct pressure level depending on the amount of water in the tank
7. Once the orange light has gone out the machine is ready to use.

NOTE: this happens, release the safety button (11) to close the steam trigger (10), and allow the steam pressure to build up once again. This should take no longer

The orange light may come back on when the machine is in use. If then 40 seconds.

Warning: If the steam trigger is pressed when the orange light is on hot water may come out of the machine.

pressurewasher

REFILLING THE WATER TANK

1. Switch the machine off using the on/off button(4)
2. Disconnect the power cable from the mains. Wait 5 minutes then squeeze
   the steam trigger (10) to release any steam pressure before unscrewing
   the safety cap (2). DO NOT unscrew the safety cap until the steam has stopped.
3. Fill the water tank as necessary using the funnel provided, to 1500mi maximum.
4. Replace the safety cap by turning clockwise. Fasten cap tightly.
5. You are now ready to switch the machine on and resume steam cleaning.

If you live in a hard water area, it is best to use distilled water. This
prevents internal limescale that may damage the steam system.

Warning – Risk of injury! The cap gets hot in use; handle with care.

heavydutycleaning

To fit any of the accessories (17, 18 or 19) ensure that the accessory adaptor is fitted to the steam gun (16 to be attached to 9) and then simply push on any

accessory required directly onto the aCcessory adaptor. To fit the snap-on extension simply remove the accessory adaptor from the
steam gun and fit the snap-on extension wands (13). The floor brush (14) is attached using the angled adaptor (15), by pushing it on the adaptor and
twisting through 180 deg to attach.

CLEANING FLOORS

Attach the floor brush to the extension wands, using the adaptor. Then attach the extension wand to the steam gun. Ensure the extension wands are firmly
connected. Before cleaning always remove dust from the surface you wish to clean. To release the extension wands press the button on each connection.

Cleaning floors & carpets with the cleaning cloth. While the machine is switched off, attach the cleaning cloth to the floor brush via the spring-loaded lips, making sure the edges of the cleaning cloth are secure (see picture above). DO NOT attempt to do this while the machine is still hot. Never remove the cleaning cloth whilst the safety trigger is released or the machine is warm to the touch.

Warning Risk of injury! How TO Operate The Steam Gun

industrialcleaning

The steam gun has a black steam trigger (10) and a red safety button (11).
The red safety buttons are marked ON and OFF/LOCK (see diagram 1 below).

a) Intermittent steam spray

Press the red safety button to the “ON” position, and then squeeze the steam trigger. Steam comes out whenever the steam trigger is squeezed (see diagram 2)

b) Continuous steam spray

if you want a continuous spray of steam, squeeze the steam trigger, then press the red
safety button to the “Off/Lock” position (see diagrams 3 & 4).

C) Close the steam gun

When you have finished steam cleaning, press the red safety button to the ON” position (see diagram 5). The steam trigger will release. Then press the red safety button to the
“flock” position, to lock the steam trigger closed (as in diagram 1).

pressurewashing

CLEANING AND MAINTENANCE

Cleaning and maintenance operations should be carried out with the appliance disconnected from the power supply The machine should be allowed to
completely cool down before it is stored away or cleaned. Clean the machine and its accessories with a slightly damp cloth only. Never use a cleaning product or detergent. To ensure that your machine operates correctly Over a long period, once out the water tank once a month to remOve
lime-scale deposits. Never use vinegar or a lime-scale remover.

NOTE Each unit comes with a spare set of O-rings. These may be used to
replace any damaged O-rings on the steam gun and adaptors. Keep out of the reach of children.

ACCESSORIES

The accessories allow you to use the power of steam to blast away grease, grime, mildew, scum, kill dust mites, fleas and harmful germs, trom difficult to
reach places all with minimum effort and without the use of chemicals.

Extension wands (13)Two extension wands allow you to select various lengths for comfortable operation, reducing the need to bend and enabling you to reach high places.

Wands and accessories snap lock into place for leak-free operation.

Floor Brush (14)

The floor brush is connected using the angled detail tool (15). Use extension wands for floor and carpet cleaning. It has spring-loaded clips to hold
the cleaning cloth. Its brush bristles loosen dirt and open fibres for steam to penetrate

Cleaning Cloth (9)
Machine washable when dirty. Easily fits to the floor brush via spring-loaded
clips. The cloth is designed to lift, trap and absorb dirt from sensitive cleaning surfaces.

Round Brushes (17)

Essential for cleaning hard-to-reach areas. Use on tile grout, grates, grills, and bathroom fittings. These small round brushes fit on the end of the steam gun
(9), using (16) adaptor.

Squeegee (19)
Use mirrors, windows, or other smooth surfaces. Steam loosens surface dirt and the rubber blade of the squeegee scrapes it clean. Attaches directly to the steam gun using (16) adaptor.

High-Pressure Nozzle (18)

Allows concentrated high-pressure steam flow. Connects directly to the steam gun using (16) adaptor.

Water Funnel and Measuring Jug (20)

Use the measuring jug to ensure you fill the machine with the correct amount
of water. The funnel ensures no mess when filling the tank!

ready stock Model 0271 Water Steam Cleaner

⚠WARNING!

Please read carefully. Important safety instructions!
DO NOT switch this machine on or attempt to use it without water in the tank.

NEVER Operate without the safety cap screwed tightly in place.
Read the attached safety instructions carefully before proceeding.

Model 0271 Water Steam Cleaner

⚠CAUTION!

Cleaning Fabrics:
A number of materials and fabrics are NOT Suitable to be cleaned by steam, For example, do not use on leather, wax-polished furniture or floors, synthetic
fabrics, velvet, Dralon brother delicate, steam-sensitive materials or surfaces

Cleaning Glass/Mirrors:

Thermal shock can also shatter glass. Before cleaning glass surfaces, carefully warm the surface by directing the steam jet on the glass from a
distance of no less than 6″ (15cm).

⚠CAUTION!

We recommend that you test in a hidden area before cleaning for colourfastness and fabric/surface sensitivity. If colour or appearance is affected Do

NOT proceed to steam clean

Help! THINK MY Steam Cleaner HAS GONE WRONG

Water comes out of the nozzle

The Steam Cleaner develops a massive amount of steam. This may condense
as water or water droplets in the steam hose and tools and nozzle, which are
then expelled when used after a period of cooling. This is normal and not a cause for concern.

No steam comes out

Check-in case the hose has become kinked or blocked, or that you have run
out of water or power!

I can’t get the pressure cap off

Make sure that you have completely de-pressurized the boiler. See the section
REFILLING THE WATER TANK.

Steam flow is erratic; sometimes it works really well, sometimes not

you have not used distilled water, you may have a small blockage inside yo
Steam Cleaner

I have hard water and use boiled water from the kettle, or water that I left in the boiler, now my steam cleaner doesn’t;t work well at all

Actually, You have made matters worse because boiled water concentrates the minerals that form limescale rather than billing them away. water left in the boiler will go off and may create a reaction with the boiler and/ or the steam hose. So always empty the machine after use and never use boiled water

SPECIFICATION

Voltage: 230V
Frequency 50Hz

Power: 1500Hz

Max steam pressure: 4.0 bar
Tank capacity : 1,500 ml (1.5 litres)

Type: Handheld
Certification:CB, CE, RoHS, SASO, UL
Power (W):1800
Voltage (V):220
Application: Car washing/Carpet/floor tile/Glass Window
Working Pressure:4-4.5 bars
Temperature:100 ºC
Heater Power:1800 W
Water Consumption:1.8 L/H
Water tank Capacity: 1.8 L
Steam Production Time:20 S
Length of the pipe:5 M
Weight:6.5 KGS
Design: As your requirement
