S Beam Tension Load Cell NS1 In Bd
Product Orgin : Singapore
Brand : Suja
Shipping Port:Xiamen
Capacities:100-1000kg
Material:Steel Alloy
Dimension:76*50.8*23mm
Rated Output:2.0 or 3.0mV/V
Protection Class:IP67 / IP68
Description

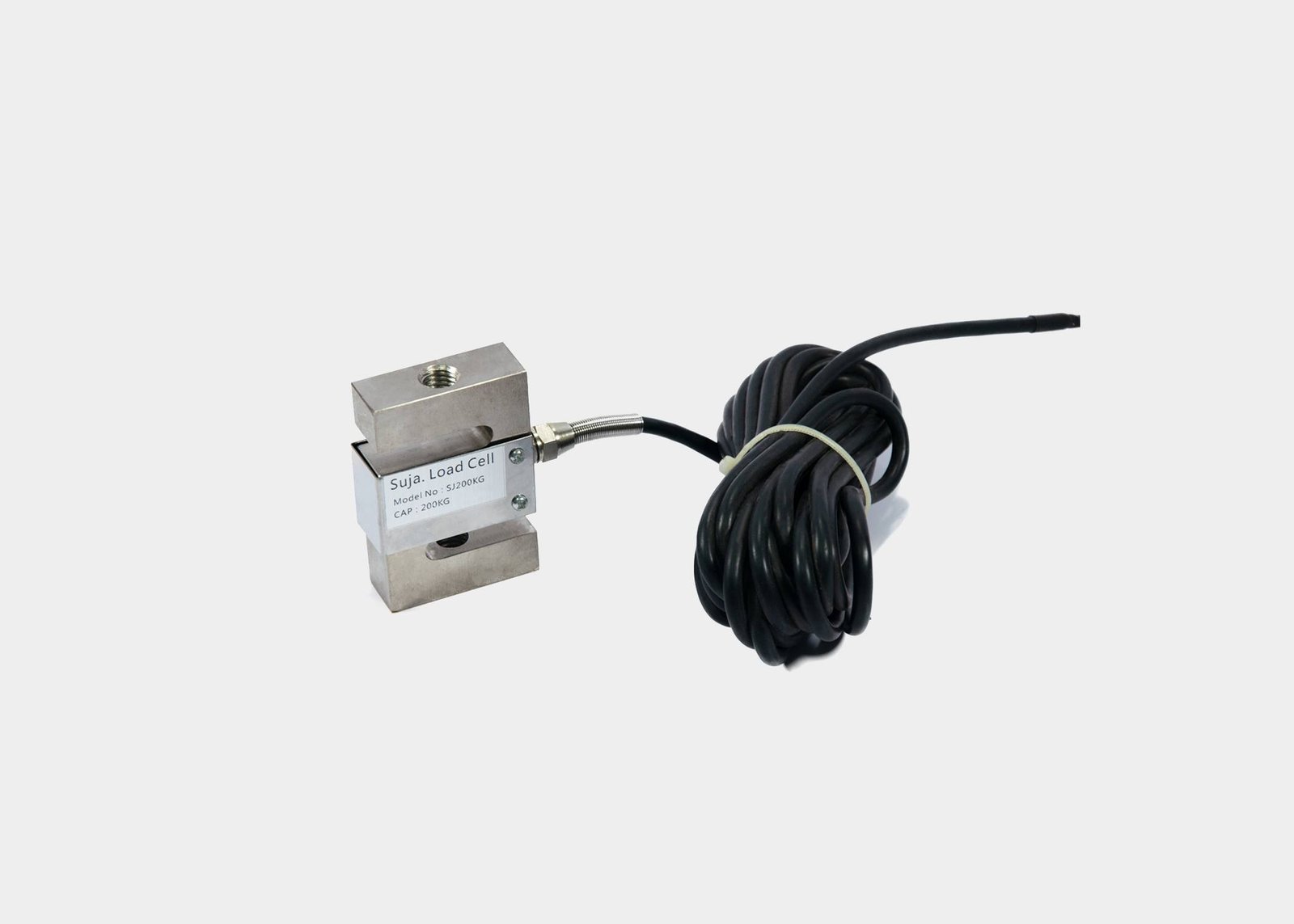

Alloy steel Tension Load Cell NS1 (100-1000 KG)
S Beam Load Cell
NS1 offers a compact design for platforms, silos, or scales. The tension Load Cell has a wide range of capacities from 100kg to 1000kg, comes in steel alloy construction.
Key Features：
Low profile
Alloy steel construction with nickel plated treatment
Capacity: 50-1000 KG
Easy to install, stable & reliable
Usage & Applications：
Hopper scales
Crane scales
Tension control and machine testing
Batching systems, blending & mixing systems, belt scales,etc
Dimension：
NS1 Specification：
| Rated Capacities | 100，200，250，300，500，750, 1000(kg) |
| Rated Output | 2.0 mV/V±0.25%；3.0 mV/V±0.25% |
| Zero Balance | ±0.0200 mV/V |
| Non-linearity | 0.03 %R.O. |
| Hysteresis | 0.03 %R.O. |
| Repeatability | 0.03 %R.O. |
| 30mins Creep | 0.03 %R.O. |
| 30mins Return | 0.03 %R.O. |
| Safe Overload | 150 %R.O. |
| Ultimate Overload | 200 %R.O. |
| Temperature Effect On Output | 0.002 %R.O./℃ |
| Temperature Effect On Zero | 0.003 %R.O./℃ |
| Input Impedance | 390±15 Ω |
| Output Impedance | 350±5 Ω |
| Insulation Impedance | ≥5000 MΩ/(50VDC) |
| Recommended Excitation | 5~12 VDC |
| Maximum Excitation | 15 VDC |
| Operating Temperature Range | -20~60 ℃ |
| Construction | Steel Alloy |
| Protection Class | IP67 / IP68 |
| Cable | φ5×3 m |
| Recommended Platform Size | |
| Mode of Connection | Red（EXC+）,Black（EXC-）, Green（SIG+）,White（SIG |
