Gasoline Engine Rammer Compactor Plate(SGR90)

What is a rammer compactor used for?

The Rammer Compactor can compact all types of soil in medium and deep layers, in trenches, foundations, backfills etc. It is ideal for compaction work in confined areas and where high compaction density is required. The thickness of the layer to be compacted should be approx. 300mm but no less than 150mm.

What is the difference between a rammer and a plate compactor?

Rammers have the ability to compact a deeper amount of soil than a plate compactor, because the force from the plate is more direct. Therefore, more soil can be added to each layer which can make the process of filling and compacting a hole or trench, much faster

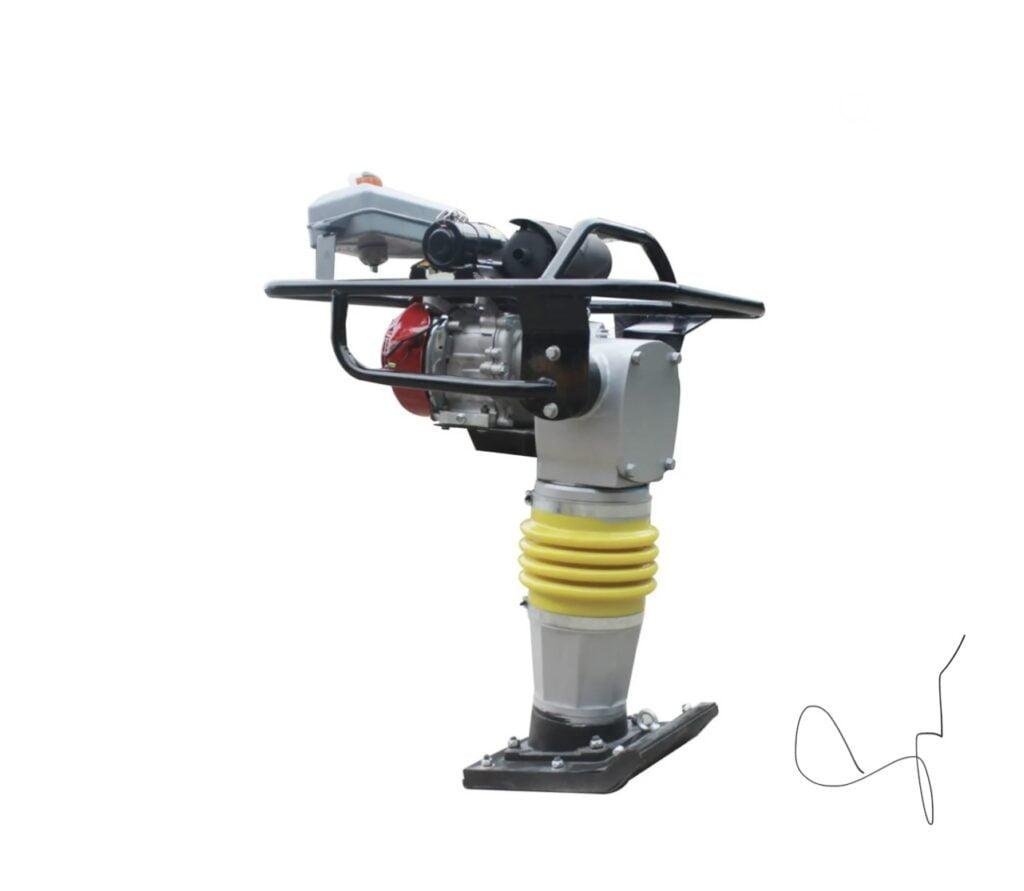

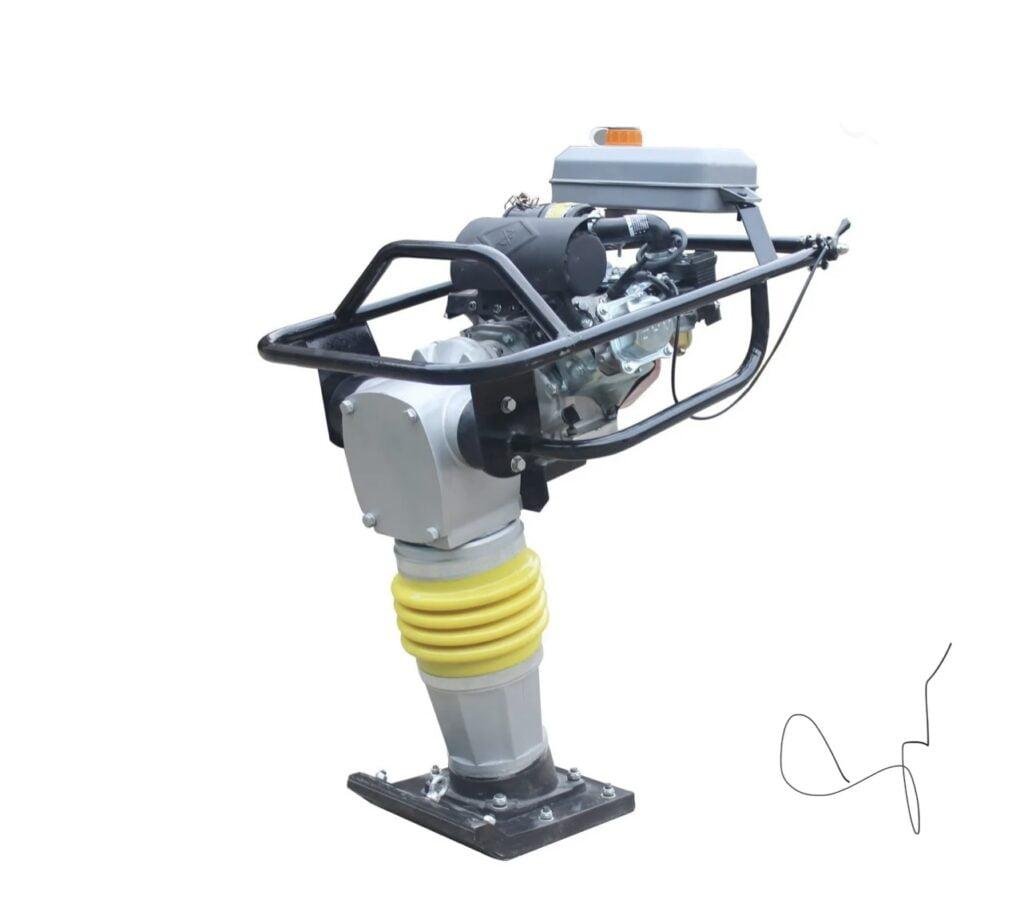

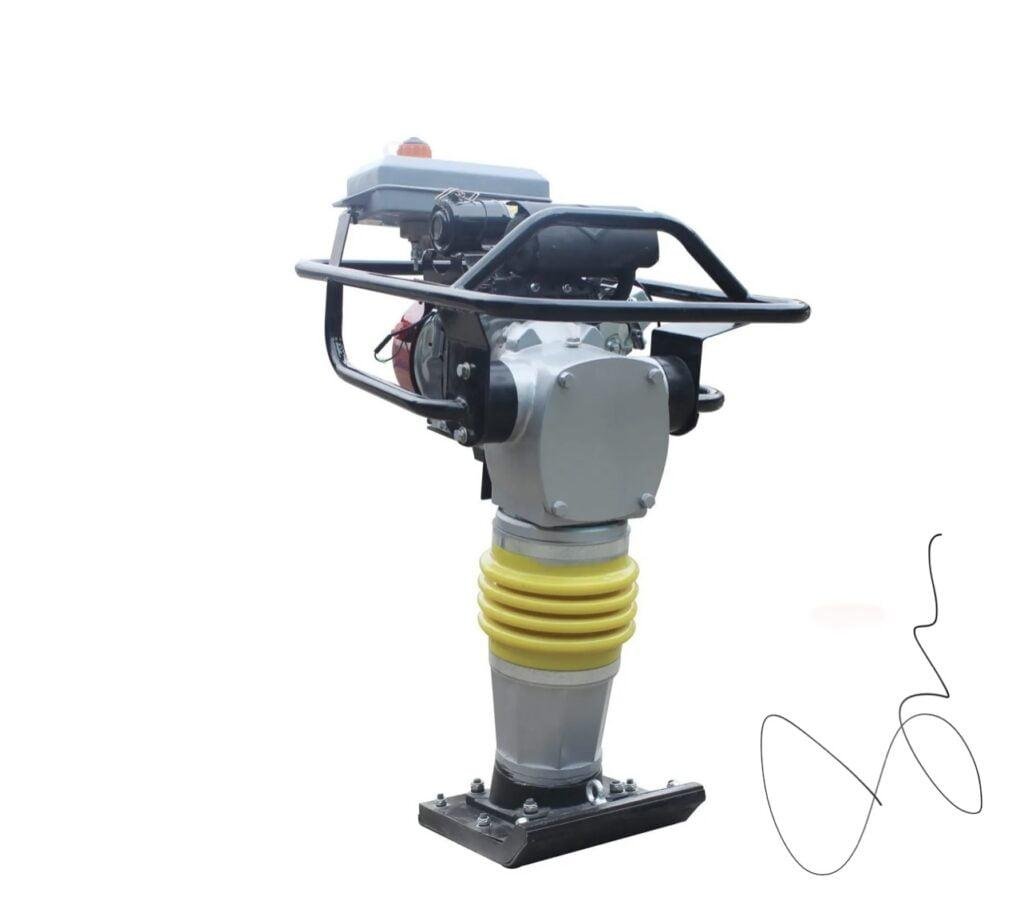

GASOLINE ENGINE RAMMER COMPACTOR PLATE (SGR90)

Engine Rammer Compactor Plate (SGR90) READY STOCK IN BANGLADESH Tamping is suitable for sand, gravel, stone, asphalt sandstone, lean concrete, and clay compaction, widely used in road construction, bridge foundation, building construction, the dam reservoir, reservoir compaction construction of farmland, especially suitable for indoor ground, courtyard, and grooves, and another narrow construction site, can be competent for large and medium-sized mechanical compaction was unable to complete the construction task.

FEATURES

• Impact frequency 700t/min.
• Jump height 45-75mm.
• Plate size 300*280mm.
• Walking speed 9-12m/min.
• Rated power 5.5-6.5hp.
• Oil tank 2.2L.
• Noise DB 60A.
• Impact force 13kn.
• Gross weight 90kg.
• Package size 1000*530*530mm.

SPECIFICATION  (SGR90)

NAMEDETAILS

ModelSGR90

Brand SUJA GLOBAL

Origin Singapore

Engine brand Honda

Impact frequency700t/minJump height45-75mmPlate size300*280mmWalking speed9-12m/minRated power5.5-6.5hpOil tank2.2LNoise DB60AImpact force13knGross weight90kgPackage size1000*530*530mm
