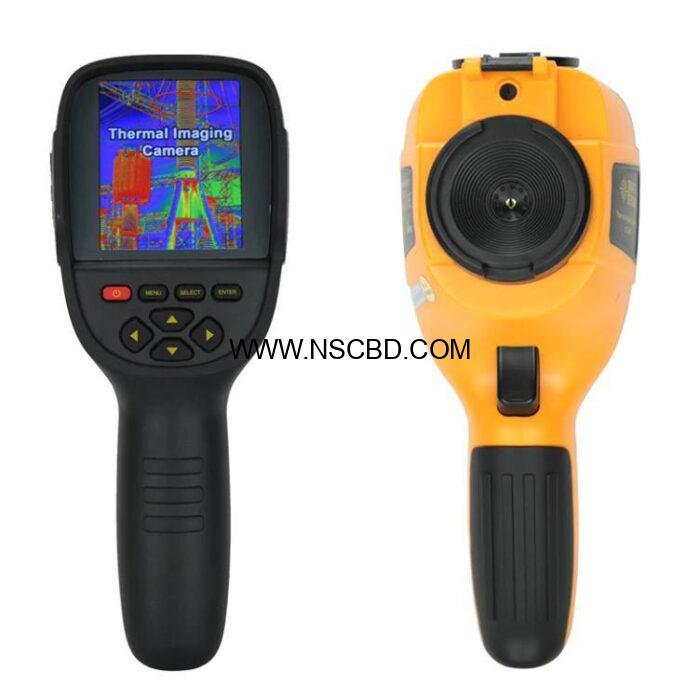

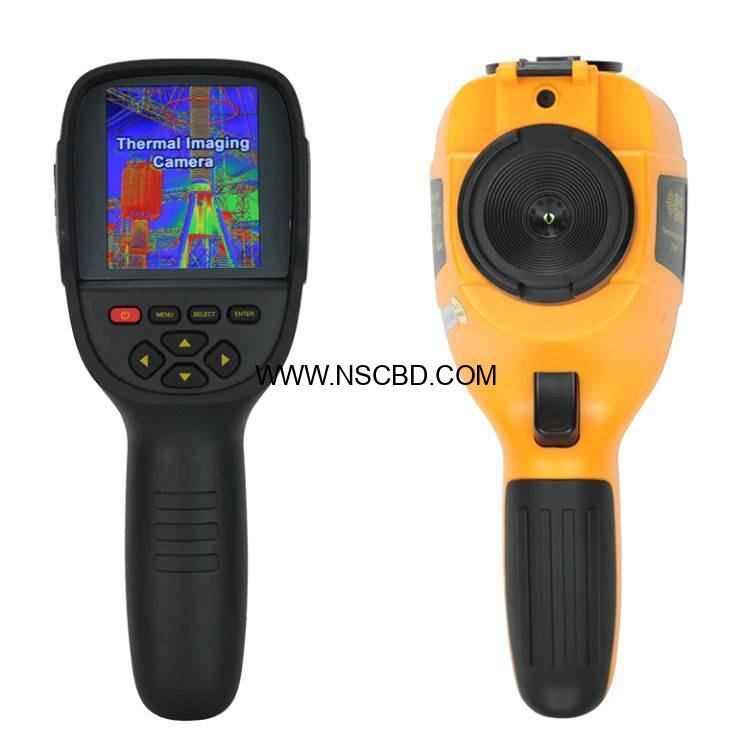

Handheld Infrared Thermal Imager ST9450 In Bangladesh
Original price was: ৳ 75,000.00.৳ 70,000.00Current price is: ৳ 70,000.00.
The SMART SENSOR ST9450 is a product from China priced at 75,000 BDT, with a one-year warranty. It is in pre-stock, includes available accessories, and does not currently have a discount. Delivery within Bangladesh costs 200 BDT. For more details, visit the product page.
Available on backorder
Description
The following major functions increase the product’s accuracy and usability:
- The radiation coefficient may be adjusted to increase the measurement accuracy of objects with half reflection surface.
- The highest temperature and lowest temperature cursor may guide the users to the areas with the highest and lowest temperature of the thermal images.
- The selectable colour palette.
Specification:
| Brand name: | Smart sensor |
| Display screen | 3.2” full angle TFT display screen |
| Infrared image resolution | 200*160 |
| Visible image resolution | 300,000 pixels |
| Field angle/shortest focus length | 27°×35°/0.5m |
| Thermal sensitivity | 0.07°C |
| Temperature measurement range | -25℃ to 450℃(-13℉ to 842℉) |
| Measurement accuracy | ±2%/±2℃ |
| Emissivity | Adjustable from 0.01 to 1.0 |
| Frame rate of thermal images | 9Hz |
| Wavelength coverage | 8-14um |
| Focus mode | Fixed |
| Color palette | Rainbow,iron oxide red,cold color,black&white,white&black |
| Storage medium | Built-in 3G |
| File format | JPG |
| USB | Micro USB 2.0 |
| Power supply | Built-in rechargeable battery |
| Automatic power-off time | Selectable:5 minutes/20 minutes/not power off automatically |
| Product size(length×width×height) | 90mm×105mm×223mm |
| Product weight | 389g |
| Working temperature | 0℃ to 45℃ |
| Storage temperature | -40℃ to 60℃ |
| Relative humidity | <85%RH |
| Package | see picture |
Diagram Description:
| 1. Visible light camera 2. Infrared imaging sensor 3. Image capture key 4. Micro USB |
 | 1. battery power 2. Current emissivity 3. Color code 4. Temperature cursor at a central point 5. Time 6. Central point temperature 7. The lowest temperature cursor 8. The highest temperature cursor 9. Maximum value/minimum value of field temperature |
 | 1. Menu key 2. Selection key 3. Enter key 4. Navigation key: UP.down, left and right 5. ON/OFF key |
Operation Instruction:
2. ON/OFF key: hold down ”  ” key to power on/off. | |
3. Switching between infrared thermal image and visible image: press” ” or “ “key to switch the degree of fusion between infrared thermal images and visible images(the degree of fusion is 0%,25%,50%,75% and 100%). | |
| 4. Image capture: press the image capture key. prompt. If “yes” is selected, please press the “MENU” key to confirm to save the image. If”no” is selected,press the “SELECT” key to confirm not to save the image. | |
5. The function to hide the highest/lowest temperature column at the screen bottom: under the operation after normal startup, press the”  “key and the screen bottom will display the highest/lowest temperature column. Press”  “can also hide it. | |
| 6. Image output: The saved images through capture may be checked and output by connecting with a computer through a Micro USB |
