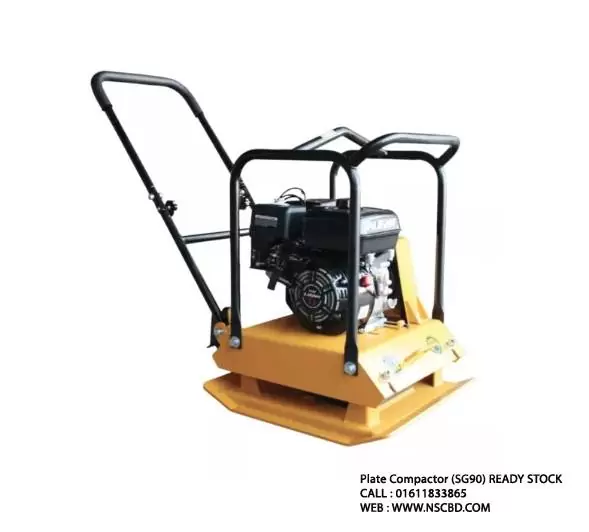

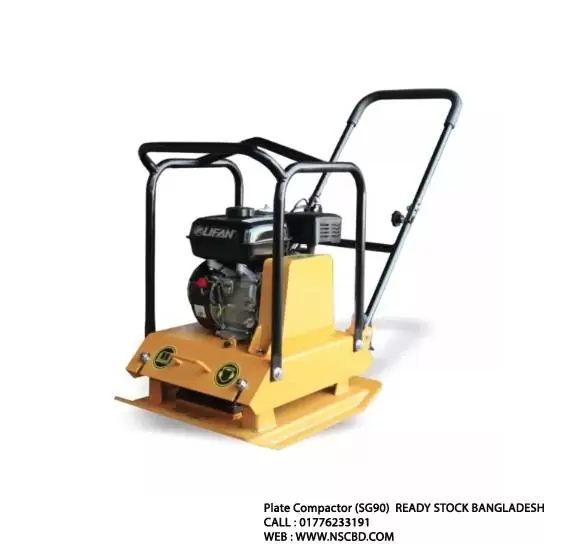

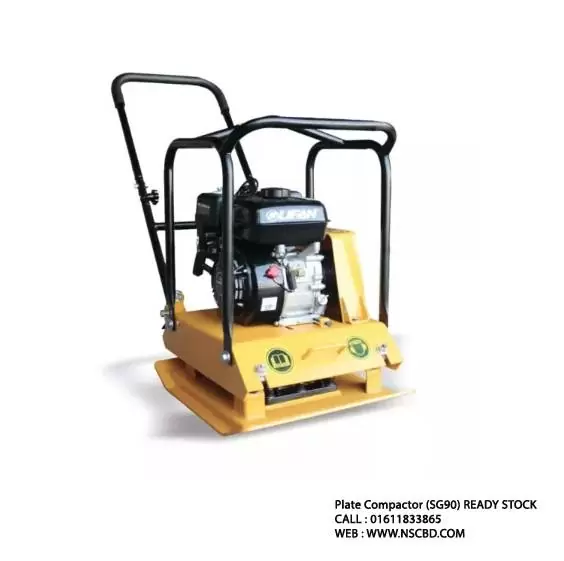

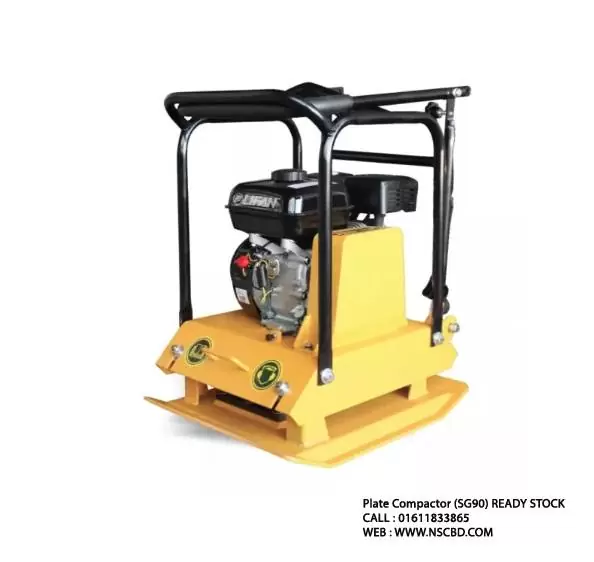

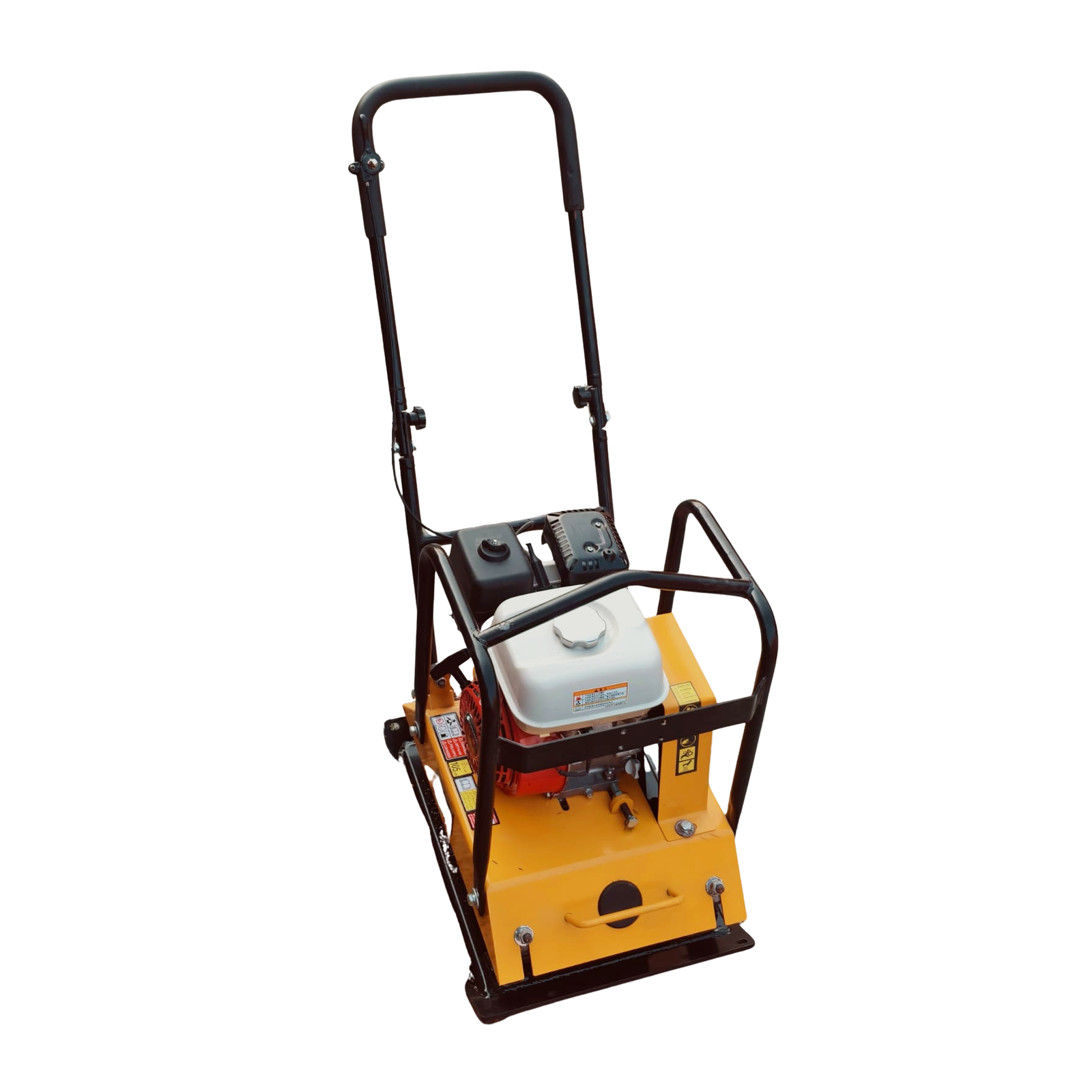

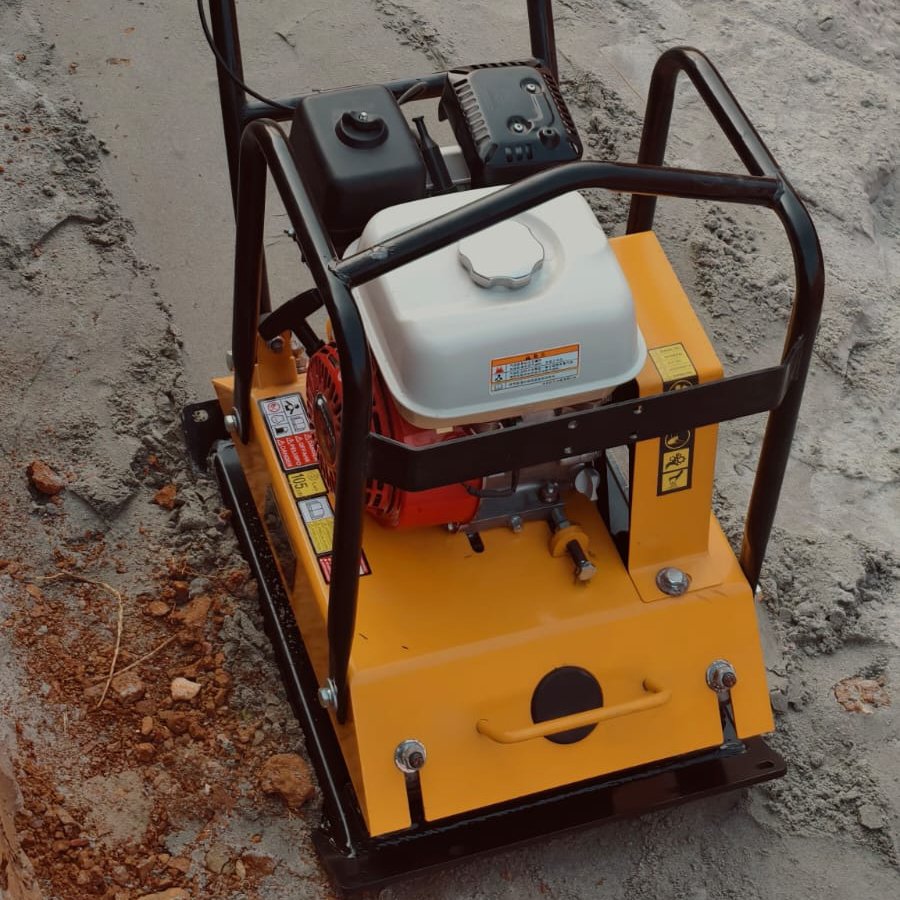

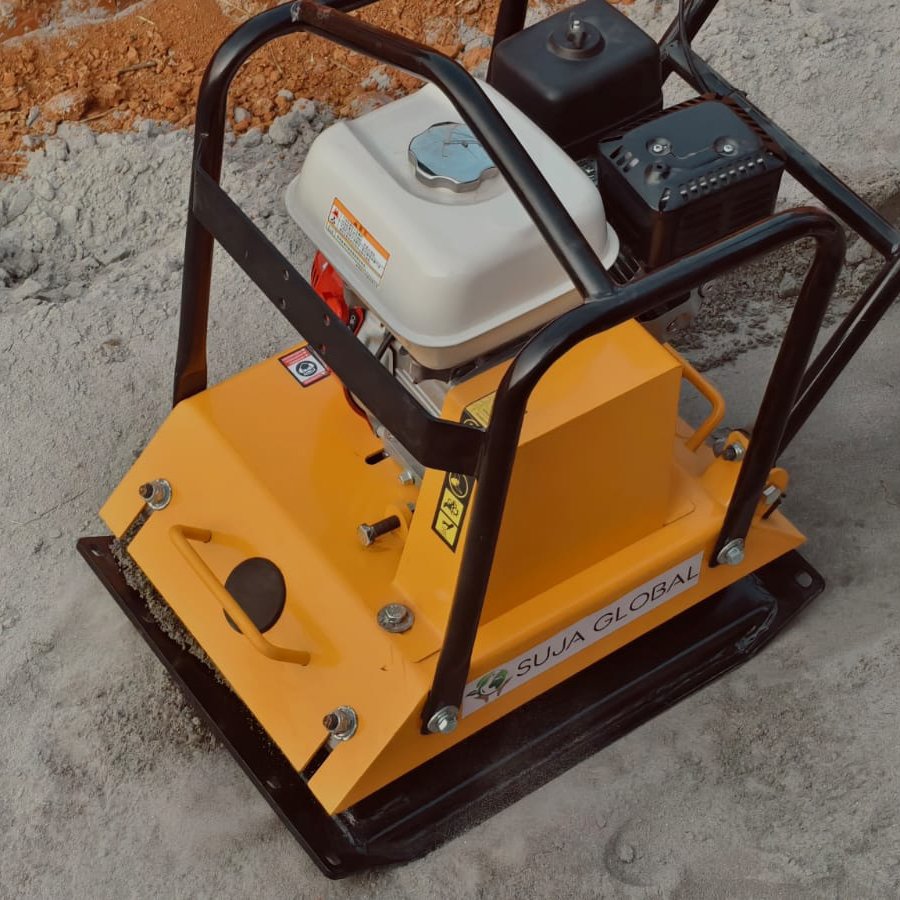

SUJA GLOBAL PLATE COMPACTOR (SG90)

Plate Compactor (SG90) can prevent various structural problems such as cracking and leaking walls, foundation erosion, slab issues, and breakage in pipes and improve construction quality. The machine is often used in the small building foundation, various backfill construction, and earth foundation compaction. Suitable for materials with low adhesion and friction between rammed particles, especially for non-viscous sand. The compaction effect of crushed stone is remarkable.

FEATURES

Weight 90KGS.
Frequency 4200VPM.
Centrifugal force 15KN.
Compaction depth 30cm.
Plate size 50*45cm.
Package 63*52*80cm.
Packing Hob and carton.
Engine Air-cooled, 4-stroke, single-cylinder.
Engine type Honda GX160 / Chinese Petrol engine / Diesel engine.

SPECIFICATION OF SUJA GLOBAL PLATE COMPACTOR (SG90)

Name	Details
Model	SG90
Brand	SUJA GLOBAL
Origin	Singapore
Engine	Air-cooled, 4-stroke, single-cylinder
Engine type	Honda GX160 / Chinese Petrol engine / Diesel engine
Weight	90KGS
Frequency	4200VPM
Centrifugal force	15KN
Compaction depth	30cm
Plate size	*5045cm**
Package	*635280cm*
Packing	Hob and carton

Honda GX160 Details

ENGINE TYPE Honda GX160 4- stroke single cylinder
OHV petrol engine 25° inclined cylinder horizontal shaft

CYLINDER SLEEVE TYPE Cast iron sleeve

BORE X STROKE 68 x 45 mm

DISPLACEMENT 163 cm³

COMPRESSION RATIO 9.0 : 1

NET POWER 3.6 kW ( 4.8 HP ) / 3600 rpm

CONT. RATED POWER 2.5 kW ( 3.4 HP ) / 3000 rpm
2.9 kW ( 3.9 HP ) / 3600 rpm

MAX. NET TORQUE10.3 Nm ( 1.05 kgfm ) / 2500 rpm

IGNITION SYSTEMTransistorised

STARTERRecoil (el. start optional)

FUEL TANK CAPACITY3.1 Liter

FUEL CONS. AT CONT. RATED POWER1.4 L/h – 3600 rpm

ENGINE OIL CAPACITY 0.6 Liter

DIMENSIONS (L X W X H)312 x 362 x 346 mm

DRY WEIGHT 15.1 kg
